Mammography system ASR-4000E
The ASR-4000E mammography system is a digital breast diagnostic system with high image quality, low radiation dose, automatic compression and optional biopsy.
Features:
Category: Mammography
Detector :
Material.: Amorphous silicon (a-Si)
Size.: 240 × 300 mm
Price upon request
Find out the cost
Order

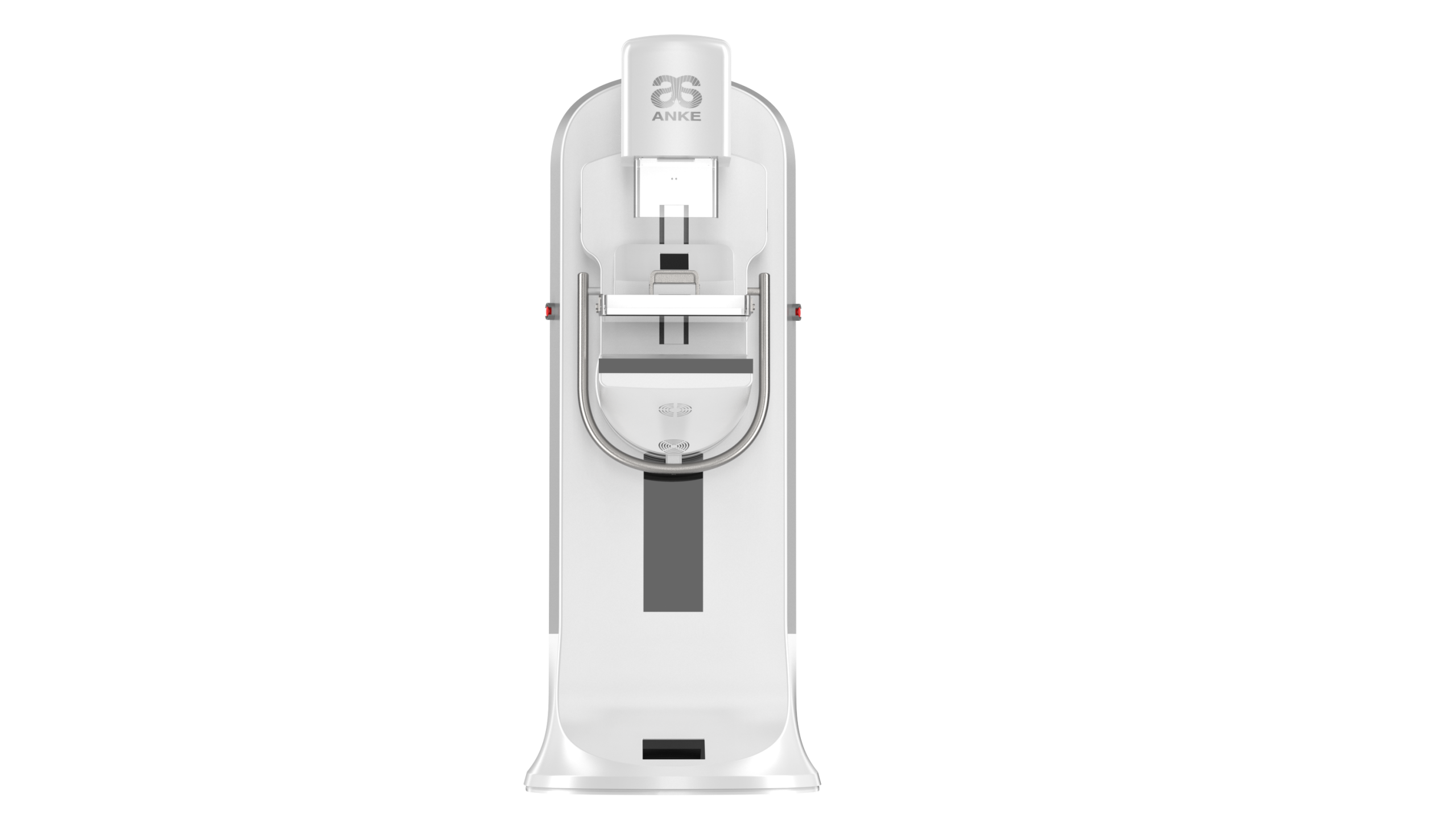

Digital mammography system ANKE ASR-4000

The ANKE ASR-4000 digital mammography system is designed for diagnostic examinations of the female breast and mammary glands. The system is equipped with a lightweight C-shaped holder and a convenient control panel, and is reliable in operation. Advanced HW&SW technology provides high image quality, examination speed and patient comfort with low radiation dose.

  • L-Dose technology automatically optimizes the treatment parameters according to the detected breast thickness and density.
  • Intelligent i-Pose positioning improves work comfort, reduces workload and increases work efficiency.
  • The f-Comp technology ensures an optimal individualized pressure for each patient.
  • The e-View system platform is highly integrated, providing a seamless workflow and easy management.

Biopsy:

The ASR-4000 mammography system can be supplemented with an optional biopsy attachment to provide this type of examination.

Detector :
Material.:
Amorphous silicon (a-Si)
Size.:
240 × 300 mm
Matrix resolution:
4096 × 3072 pixels
Spatial resolution:
6.49 parlines/mm
Dynamic range:
16 bits
Pixel size:
77 microns
Image acquisition time:
< 2 ms
Generator:
Type :
High-frequency, Spellman (USA)
Maximum power:
40 kV
Maximum output current:
160 mA
X-ray tube :
Manufacturer :
IAE (Italy)
Focal spots:
0.1 / 0.3 mm
Heat capacity of the anode:
0.3 MHU
Exposure system :
Automatic :
AEC, compression, auto-selection of filters, voltage and current
Manual:
Setting voltage, current, and time
Gentry :
Installation height:
770 - 1310 mm
Turning angle:
-180° to +180°
Compression system :
Mode. :
Automatic / manual
Vacation mode:
Automatic / manual
Compression force:
1 - 200 Н
Operating range :
5 - 280 mm
Collimator :
Control :
Automatic
Dimensions:
180 × 240 mm, 50 × 180 mm
Illumination:
LED
Power supply:
Voltage :
220 В ± 10%
Frequency.:
50 Hz
