Operating table OP-2P

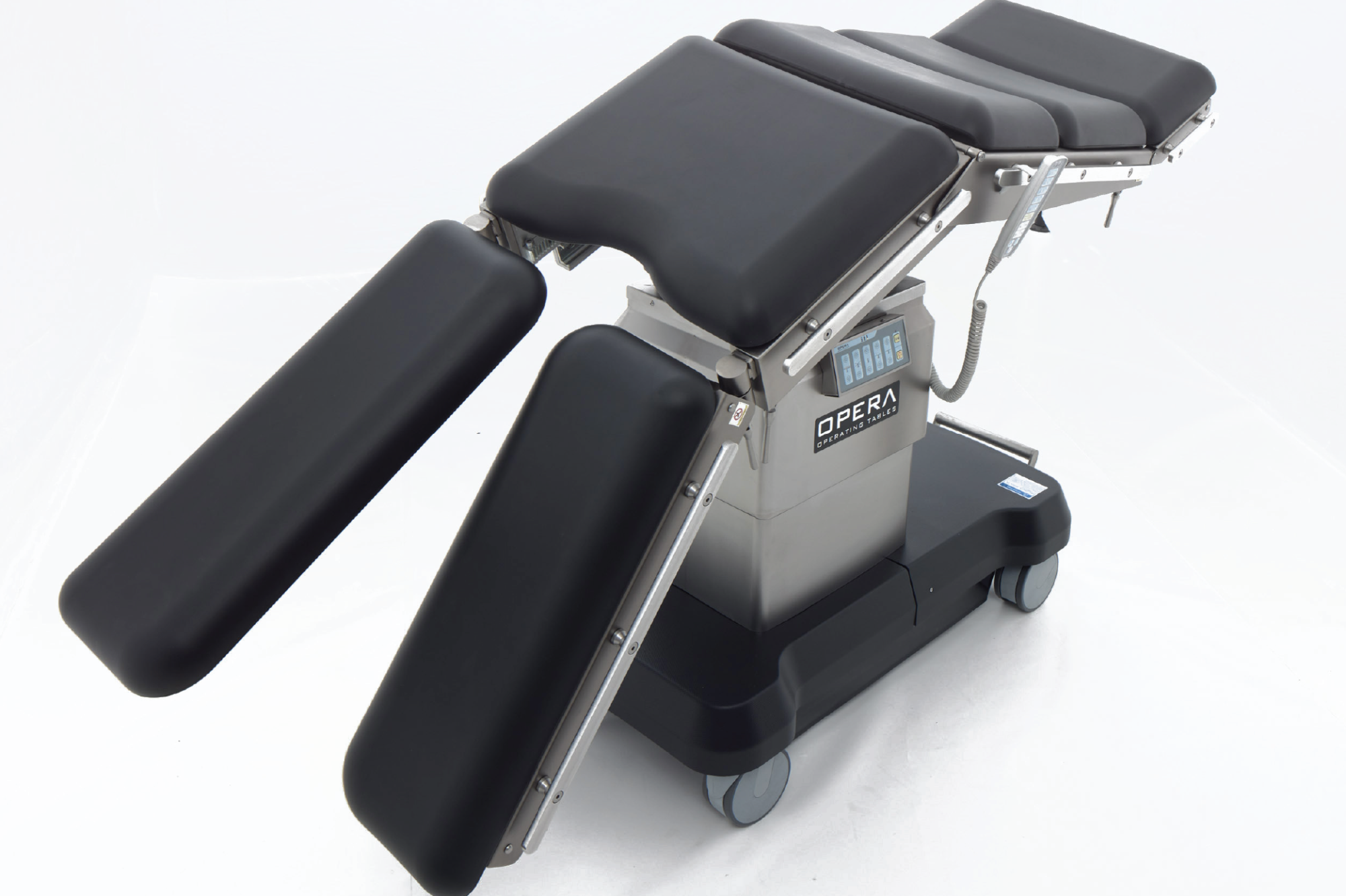

The OP-2P operating table is a multifunctional table with 5 position memory, renal lift, user-friendly controls, height adjustment (80-120 cm) and removable sections for maximum versatility.
Features:
Category: Operating tables
Width × Length : 2200 × 610 mm
Height (min. with cushion): 810 mm
Height (max. with cushion): 1210 mm
Price upon request
Find out the cost
Order
Memory function Stores up to 5 different positions for quick access

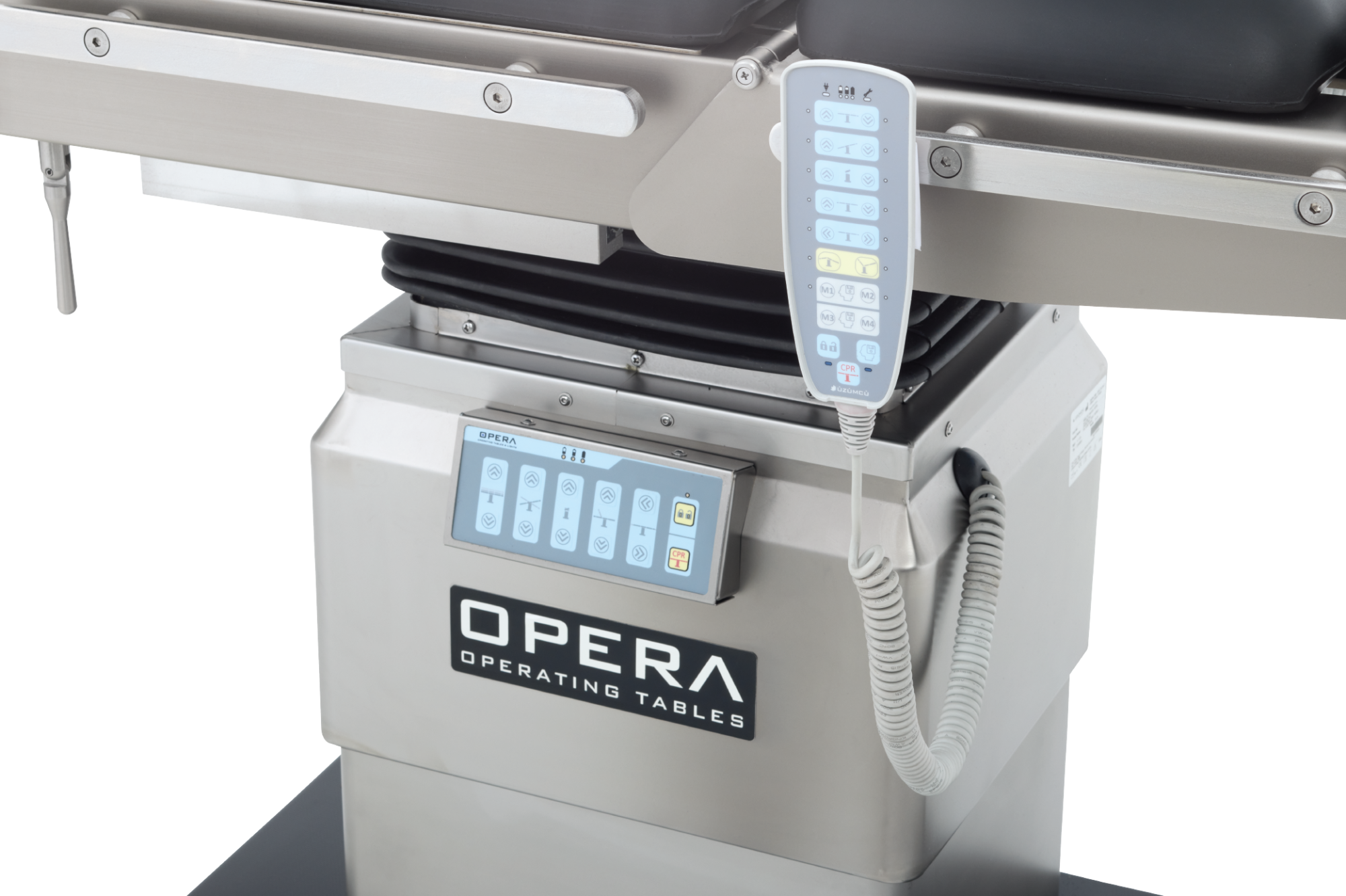

Controls. Wired hand and body controller (height adjustment, backrest, Trendelenburg, reverse Trendelenburg, side tilt, horizontal movement)
Kidney lift Up to 300° angle and 12 cm height for better visibility and successful surgery
Central brake Activated by the foot pedal, ensures reliable fixation of the table
Height adjustment From 80 cm to 120 cm for user comfort

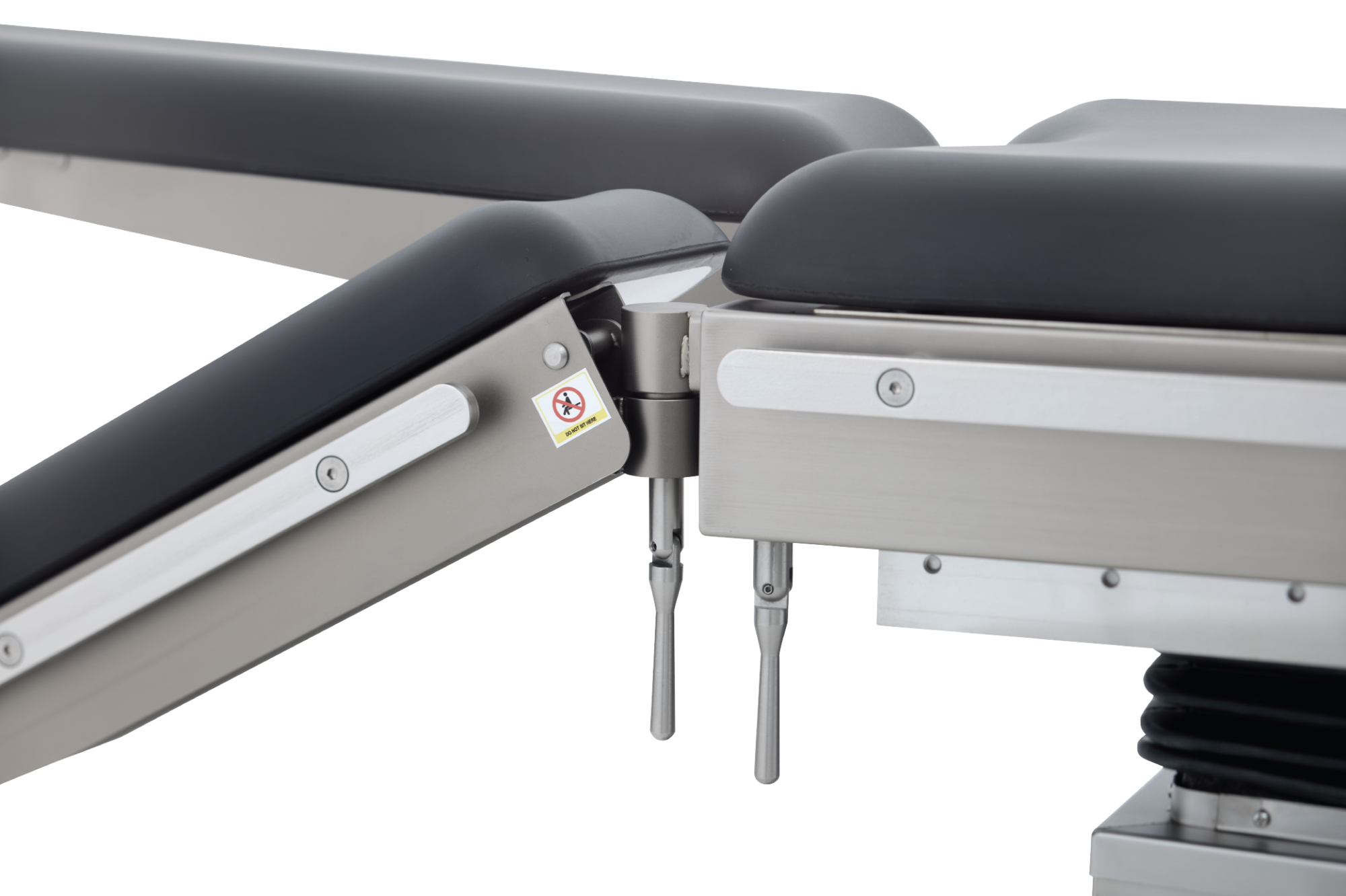

Head and leg sections Quick manual adjustment thanks to gas piston; can be removed and replaced with accessories
Width × Length :
2200 × 610 mm
Height (min. with cushion):
810 mm
Height (max. with cushion):
1210 mm
Longitudinal movement:
300 mm
Maximum patient weight:
360 kg
Lateral tilt :
+20° / -20°
Movement of the back section:
+90° / -35°
The position of Trendelenburg:
+25°
The reverse position of Trendelenburg:
±25°
Movement of the leg section (up/down):
+35° / -90°
Movement of the leg section (right/left):
80°
Movement of the head section:
+30° / -80°
Regulations for renal operations :
135°
Position "Flex / Reflex":
+215° / -90°
