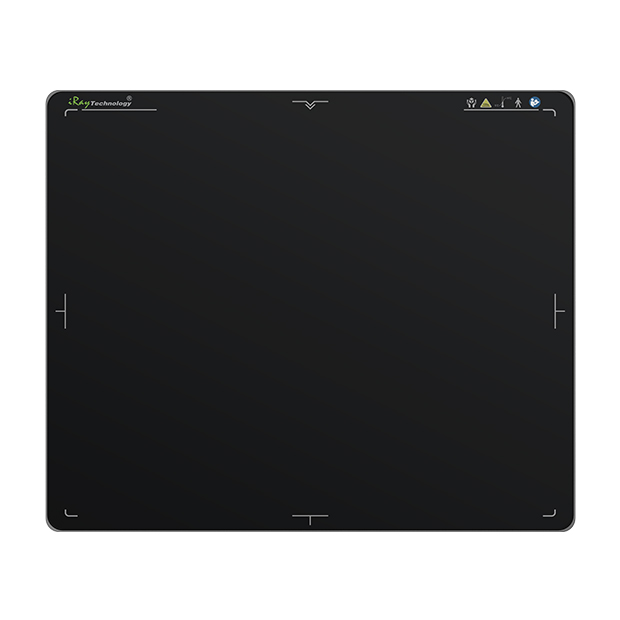

Wireless detector Mars 1417X

The Mars 1417X Wireless Detector is a cassette detector for medical systems (bucky) with wireless control, 100 µm pixel, 16-bit ADC, 8+ hour battery, and lightweight IP56 design. It supports high DQE at all frequencies.

Detailed description

Features:

Category: Digital Detectors

Detector technology: Amorphous silicon

Size (mm): 384 × 460 × 15

Scintillator: CsI

All specifications

Price: ₴980 000

Manager consultation

Order

Description
Features

Wireless cassette detector in accordance with ISO 4090, compatible with cassette receiving systems (bucky).
Full control of the AED, the ability to expose at any time.
High-end pixel size of 100 microns with 16-bit ADC for more detailed images.
High-capacity battery with over 8 hours of autonomy.
Lightweight design with IP56 protection class.
Supports fast workflow for increased usability.
Direct application of CsI with consistently high DQE at all frequencies.

Detector technology:

Amorphous silicon

Size (mm):

384 × 460 × 15

Scintillator:

CsI

Weight (kg):

3,0

Image area (inches):

14 × 17

Static load (kg):

300

Pixel size (μm):

100

Protection class:

IP56

ADC (bit):

Operating temperature (°C):

10 ~ 35

Battery life (hours):

8,5

Storage and transportation temperature with packaging (°C):

-20 ~ 55

Wi-Fi:

2.4G and 5G, IEEE802.11 a/b/g/n/ac

Operating humidity (% RH):

5 ~ 90 (without condensation)

Trigger mode (trigger):

AED (optional) / software

Humidity during storage and transportation with packaging (% RH):

5 ~ 95 (without condensation)

Full image acquisition time (s):
