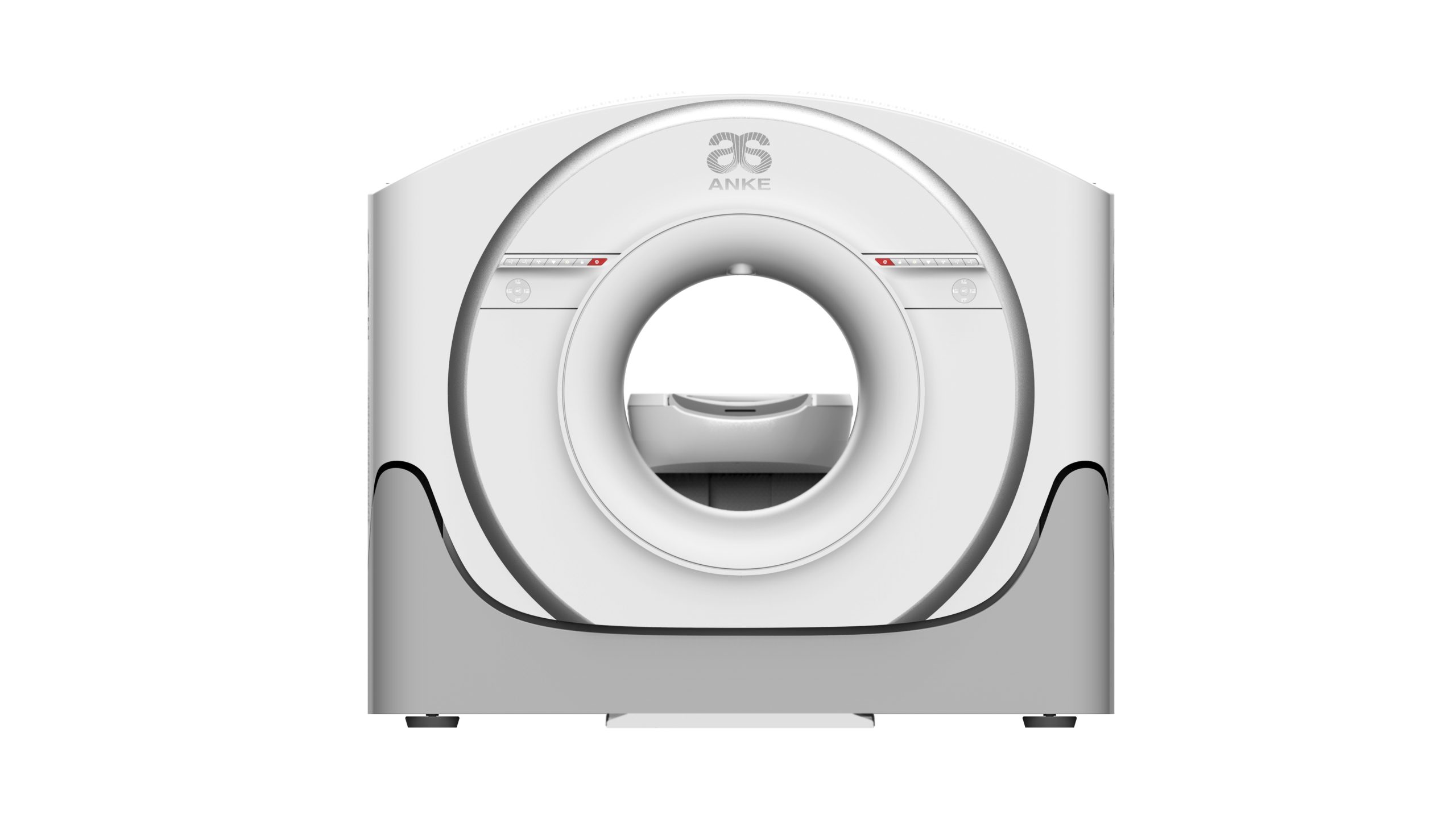

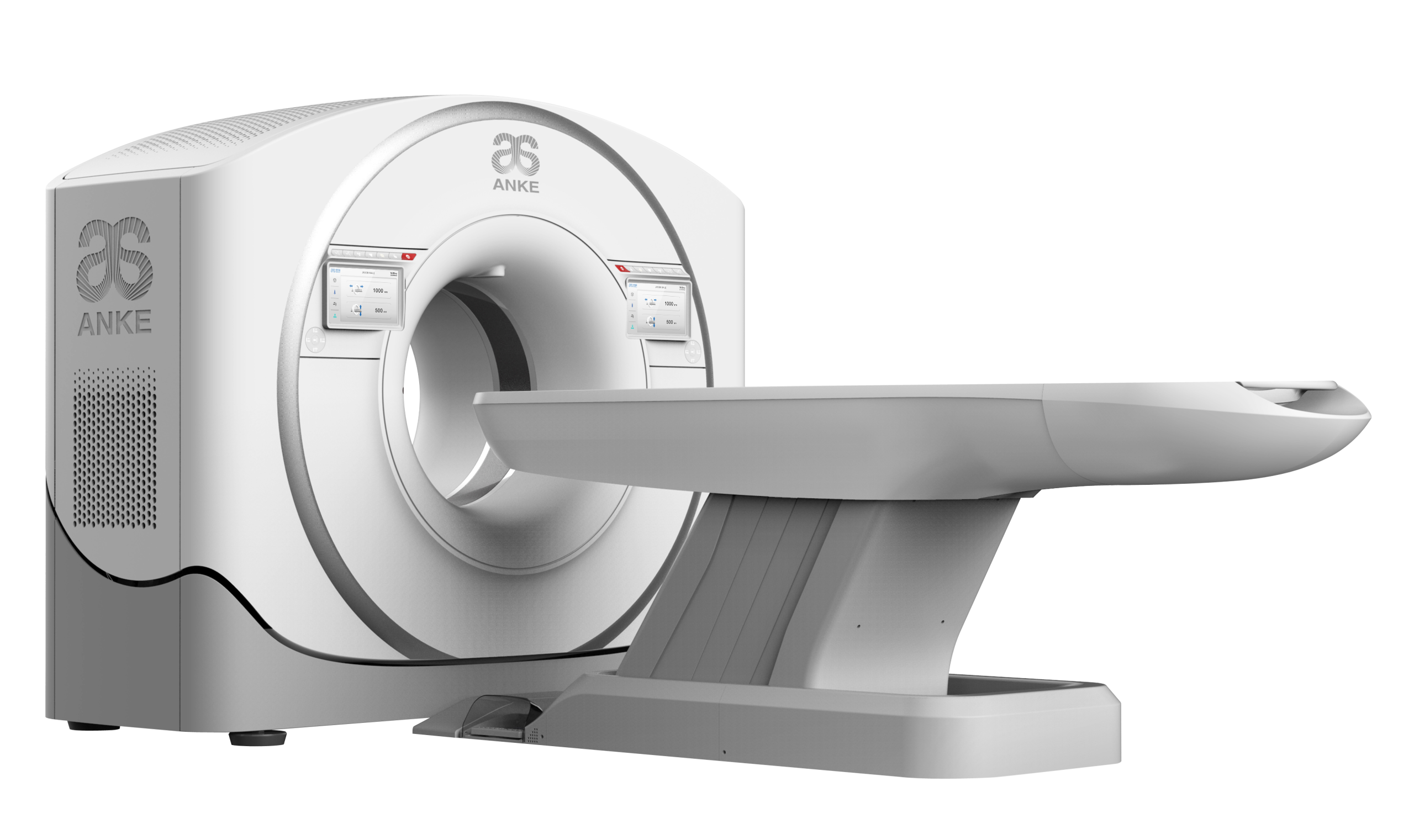

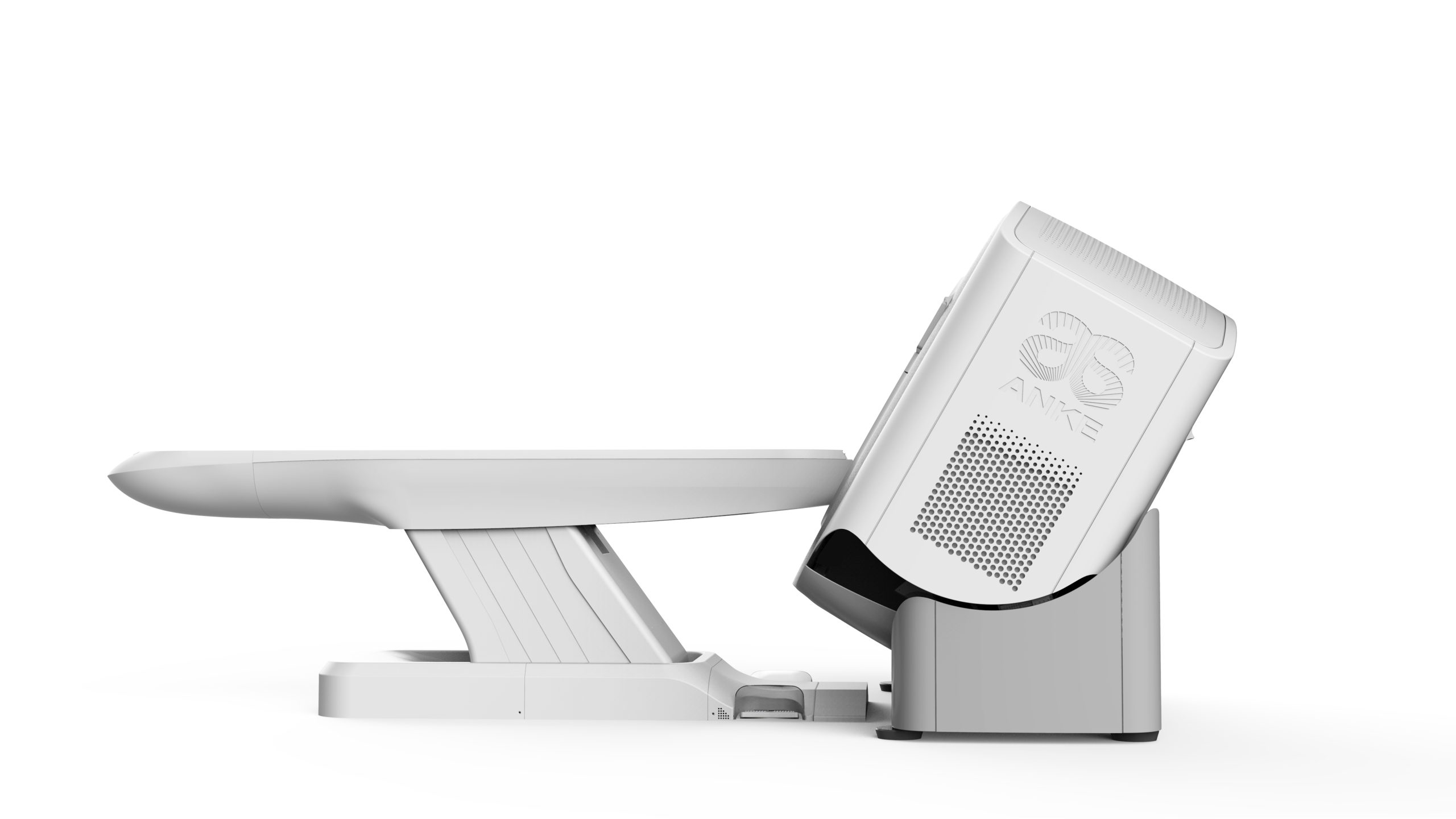

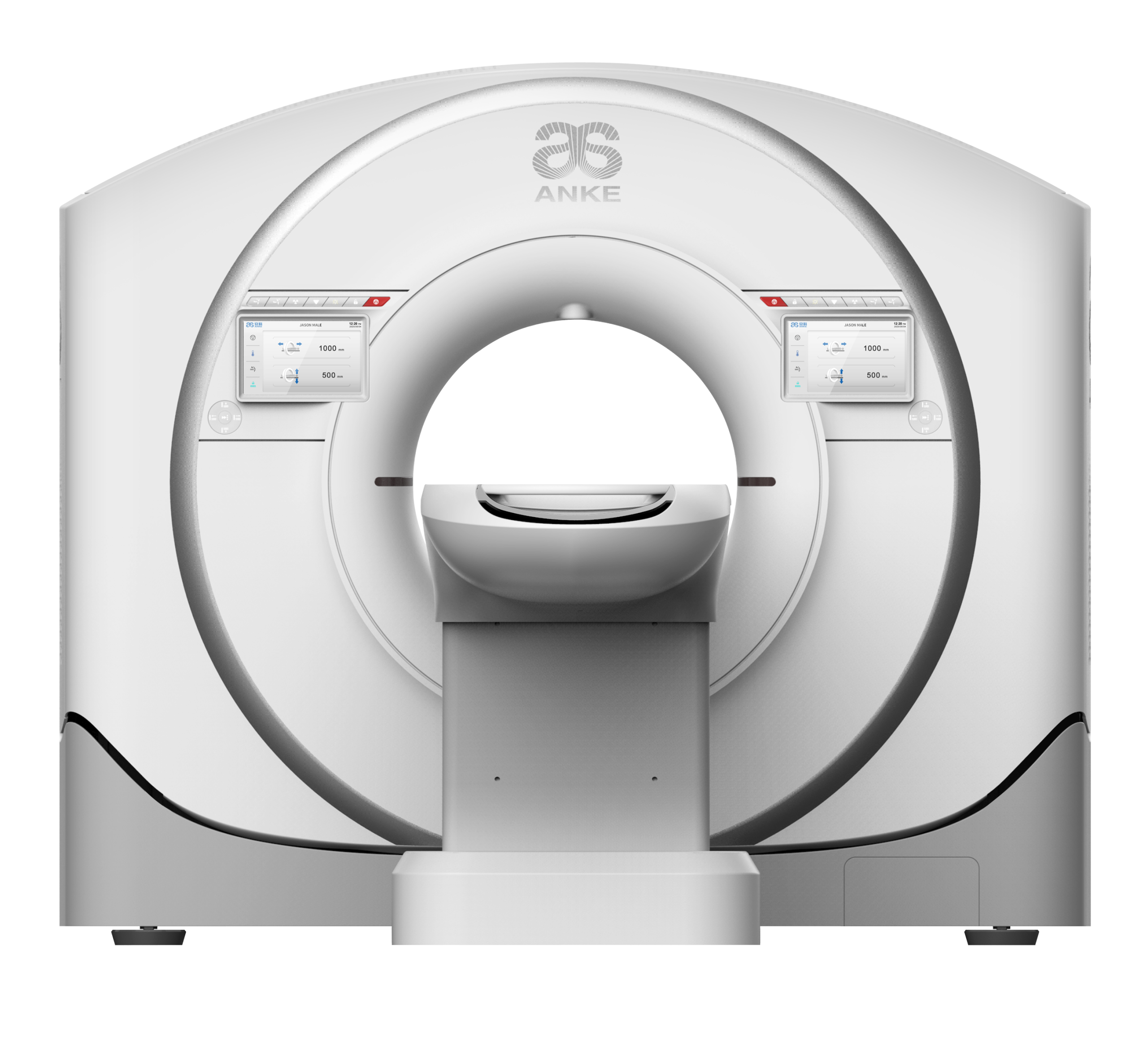

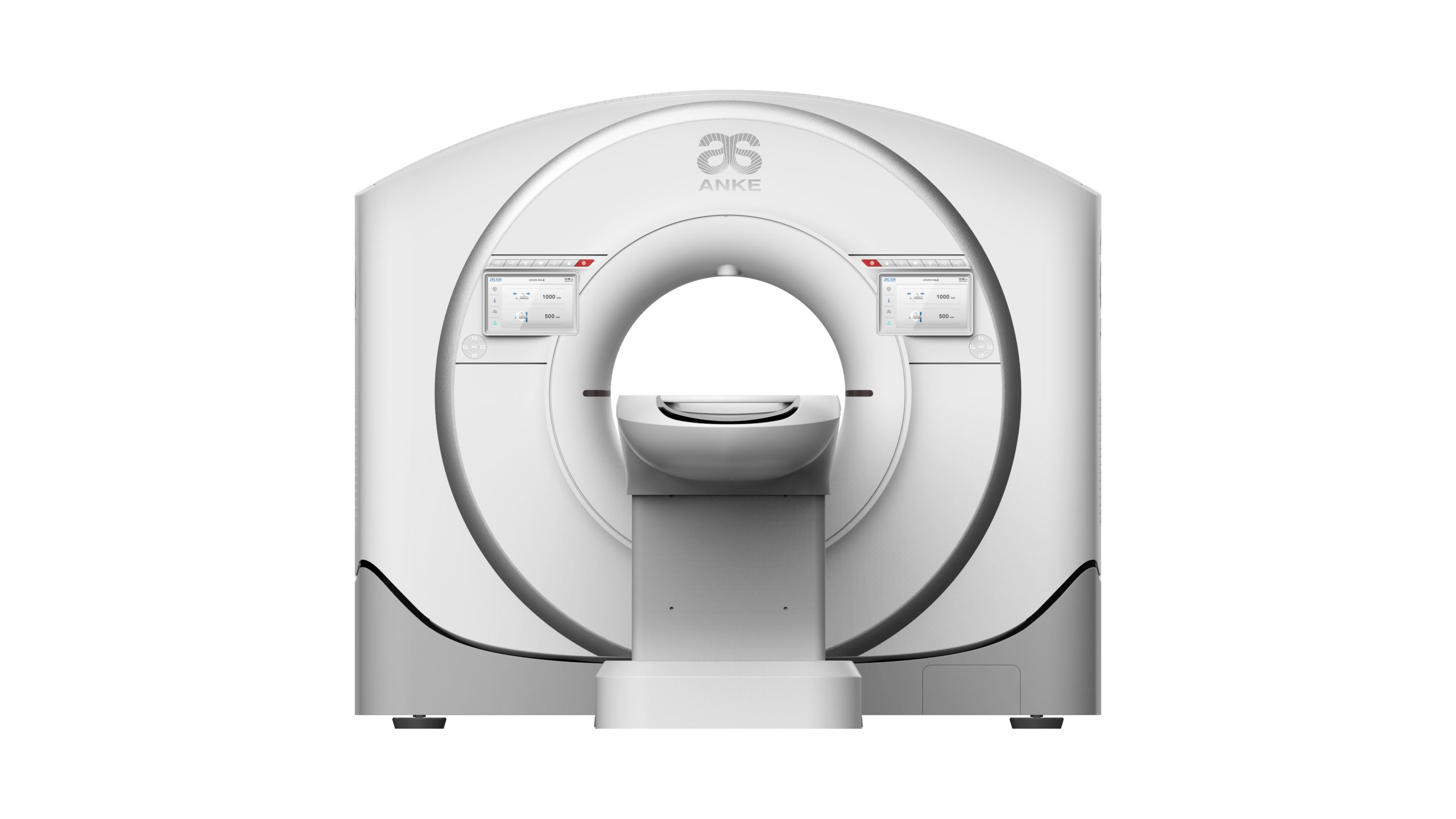

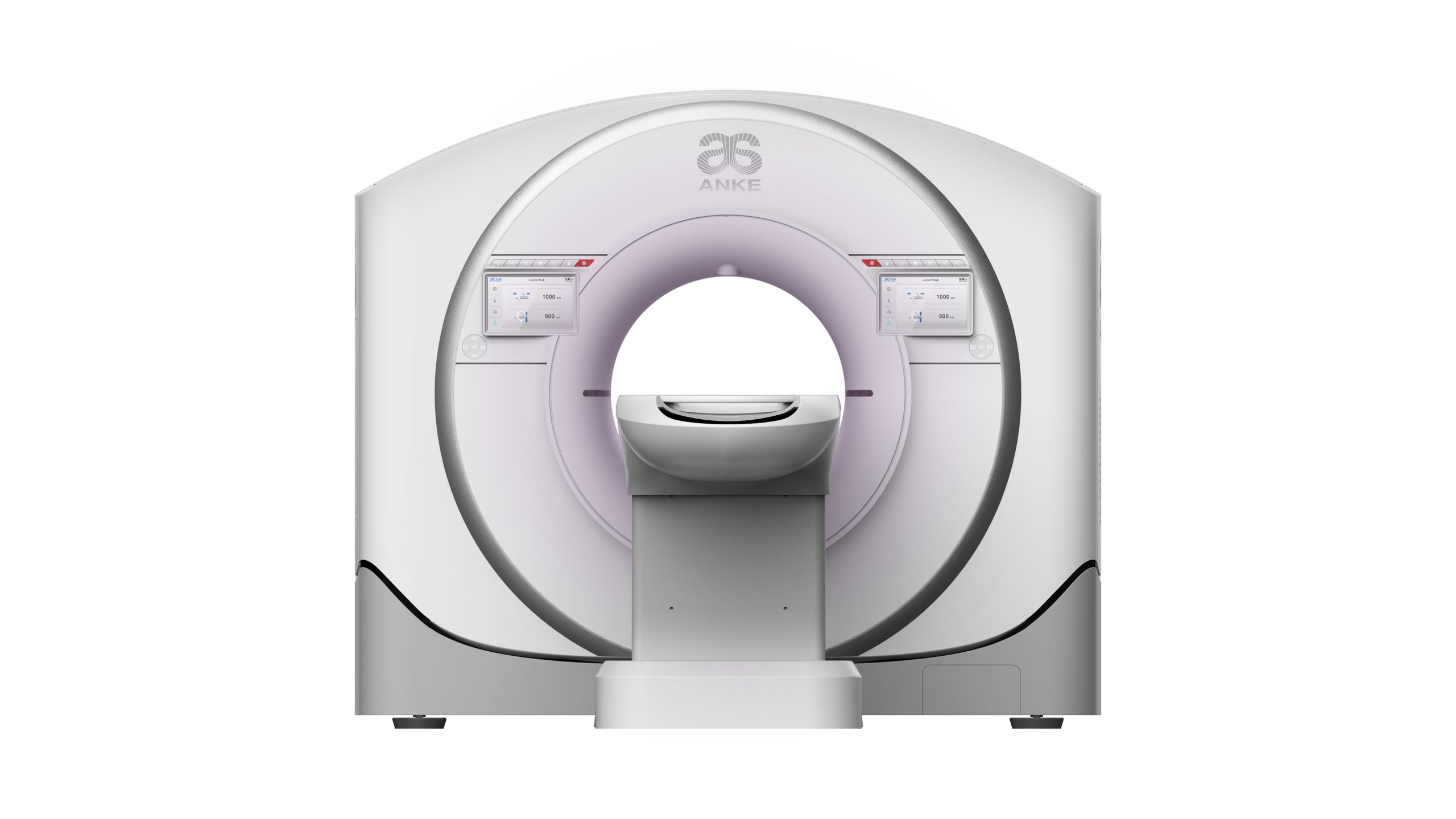

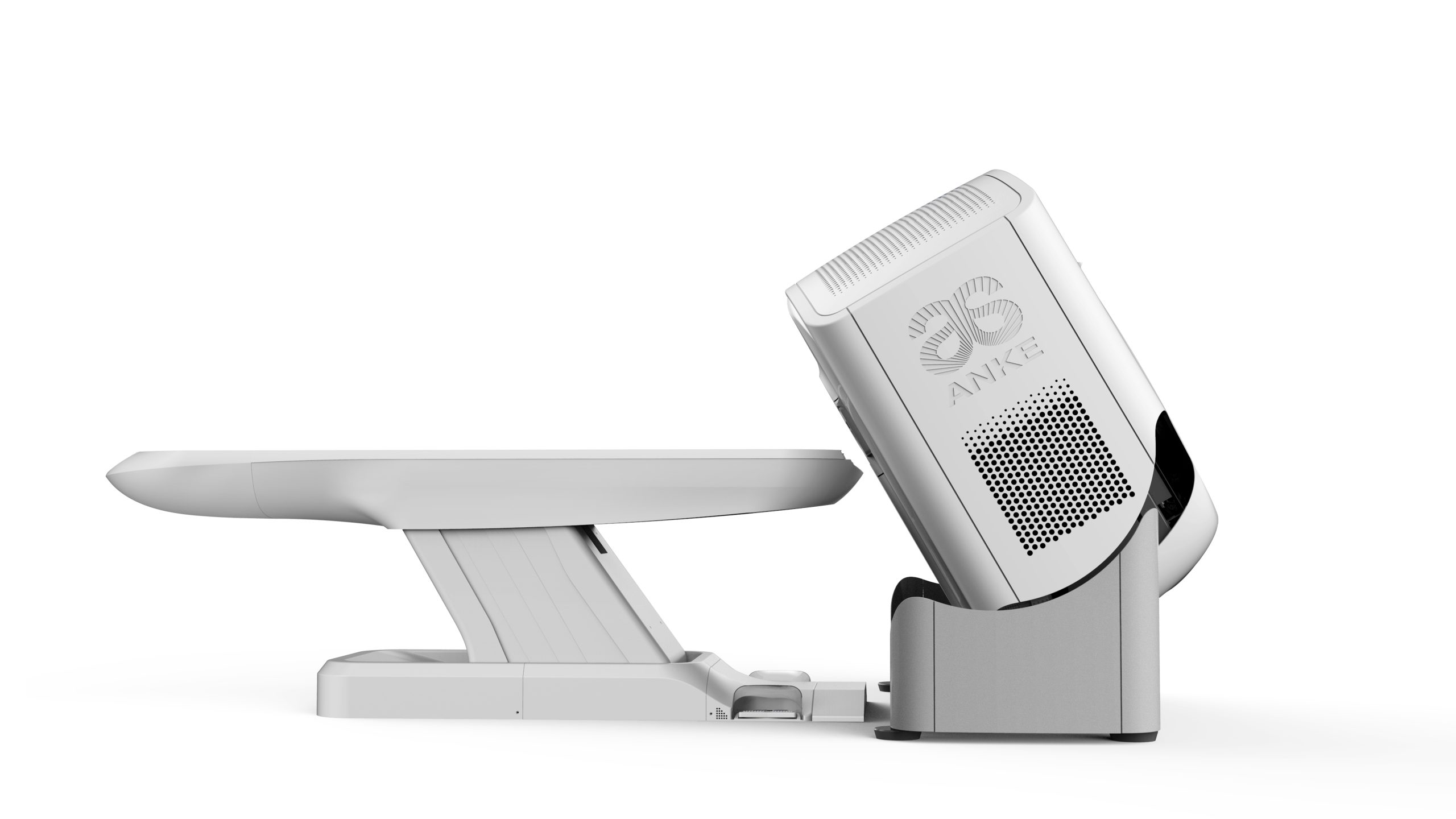

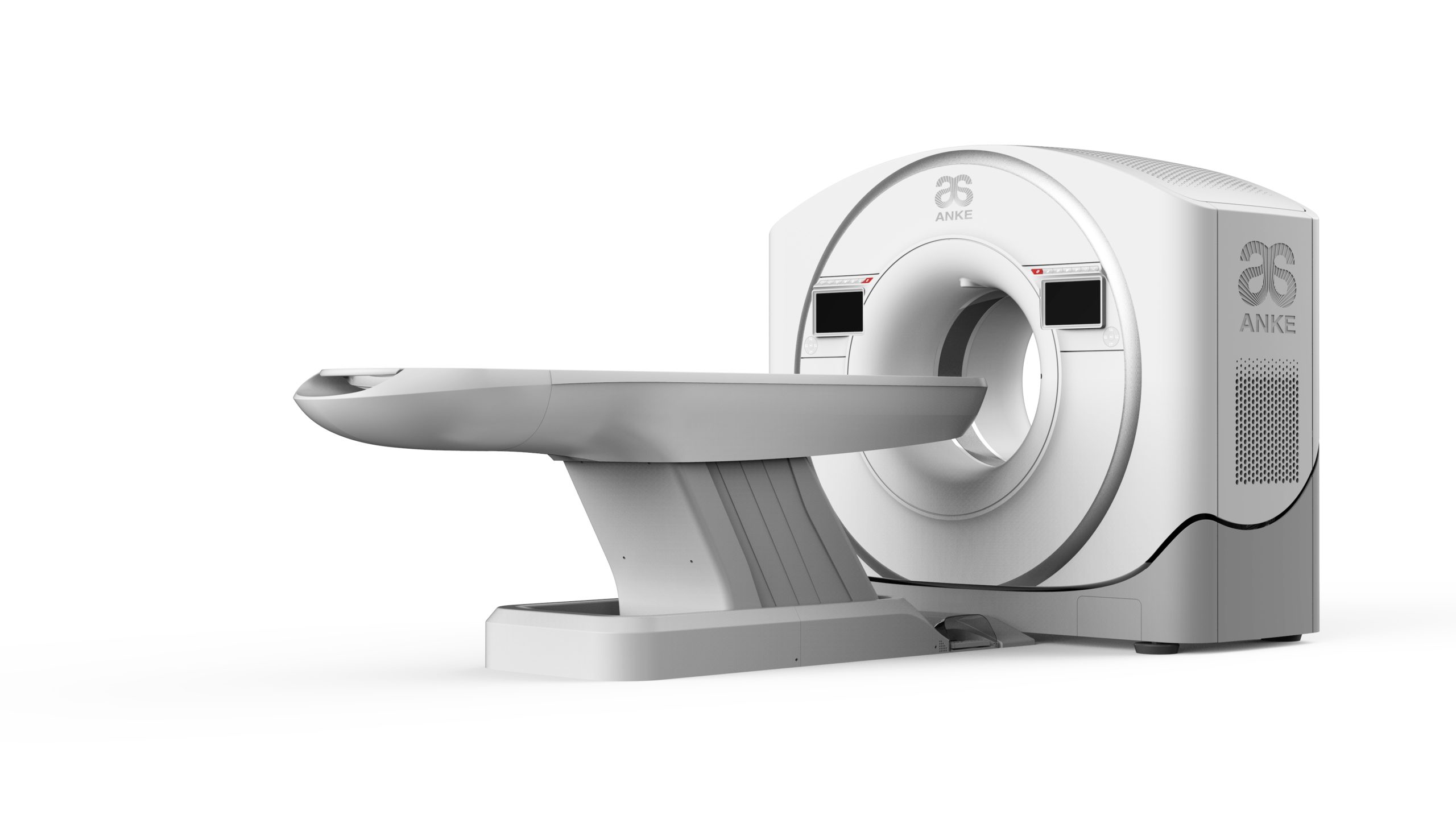

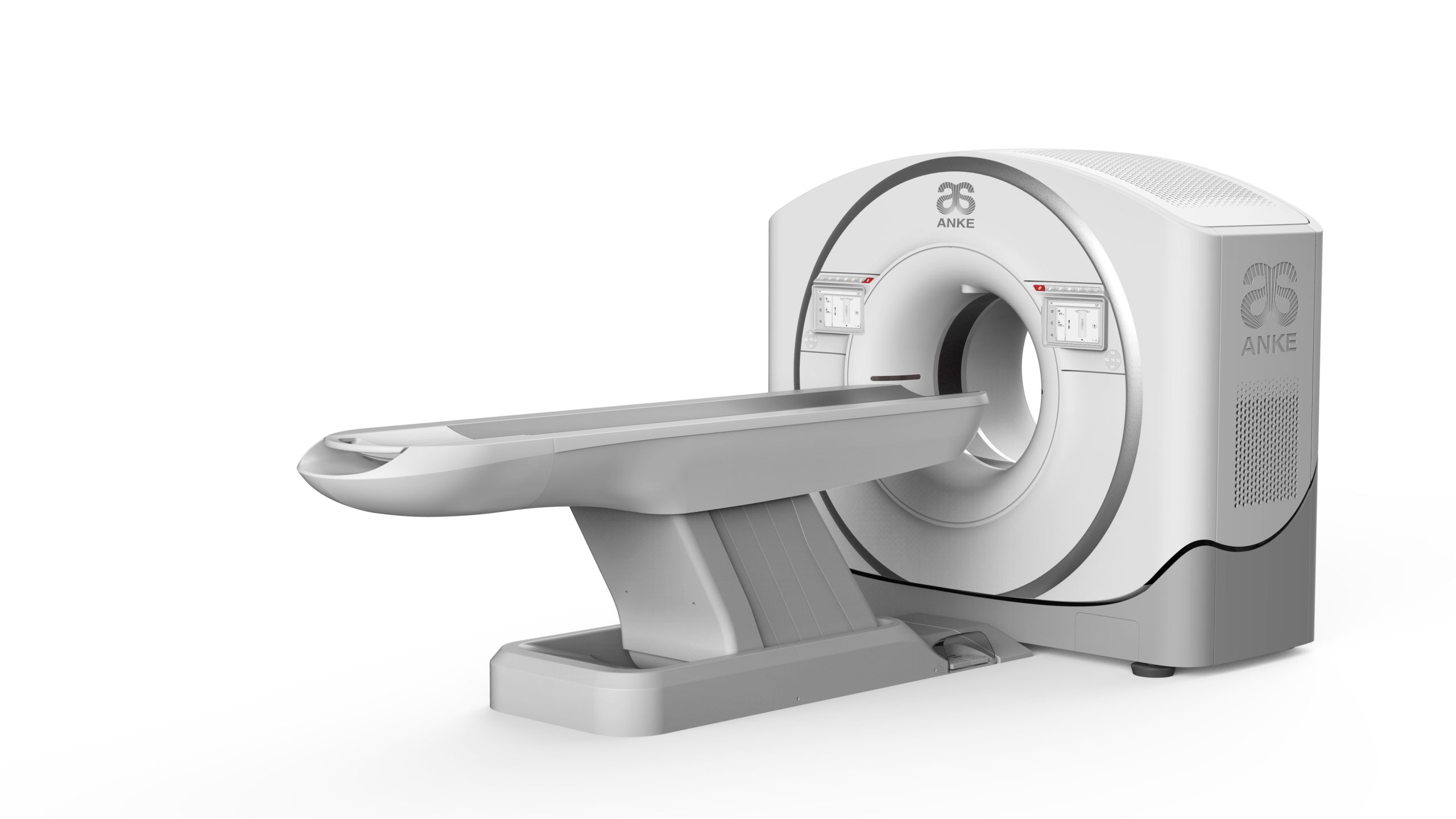

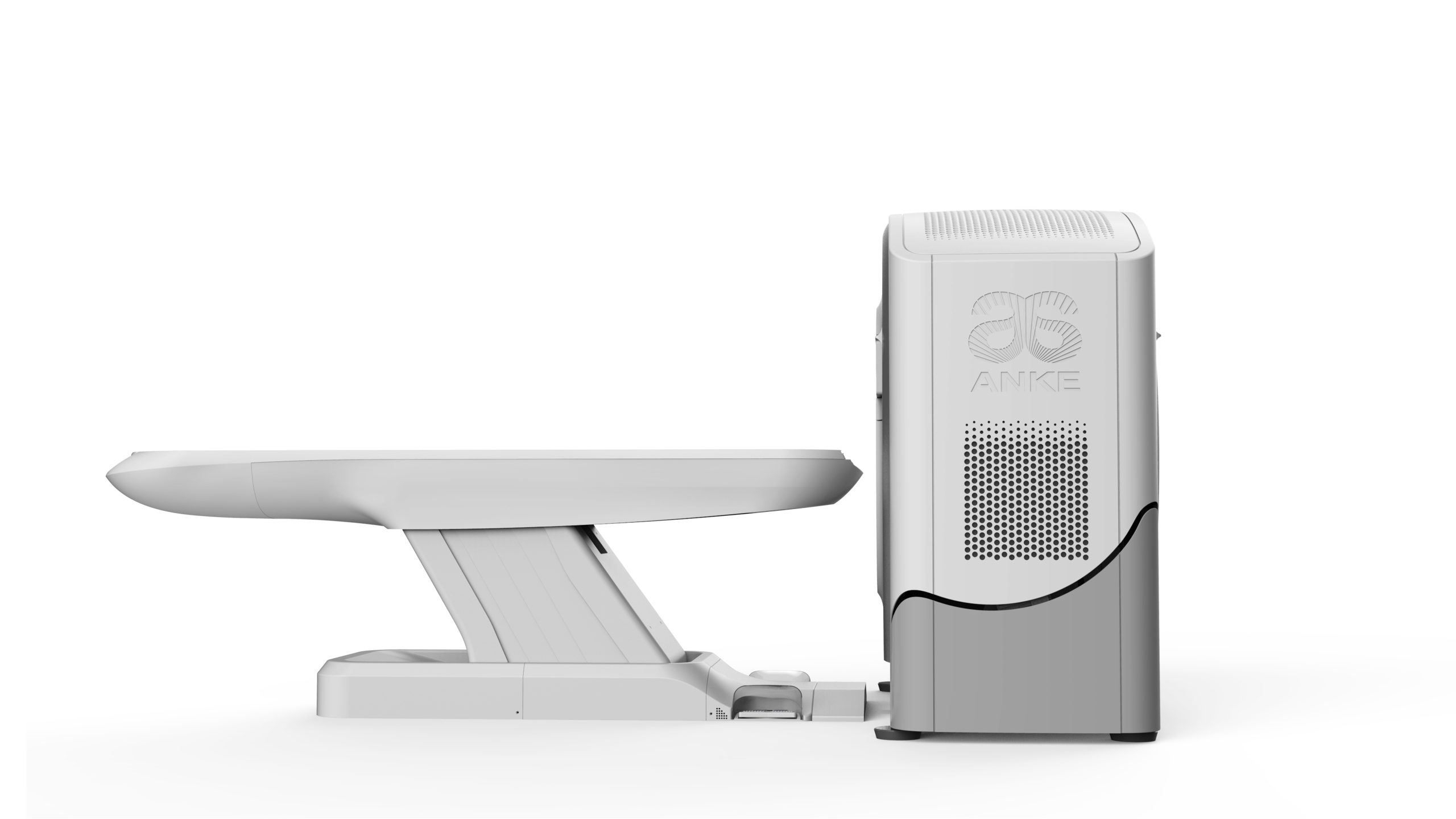

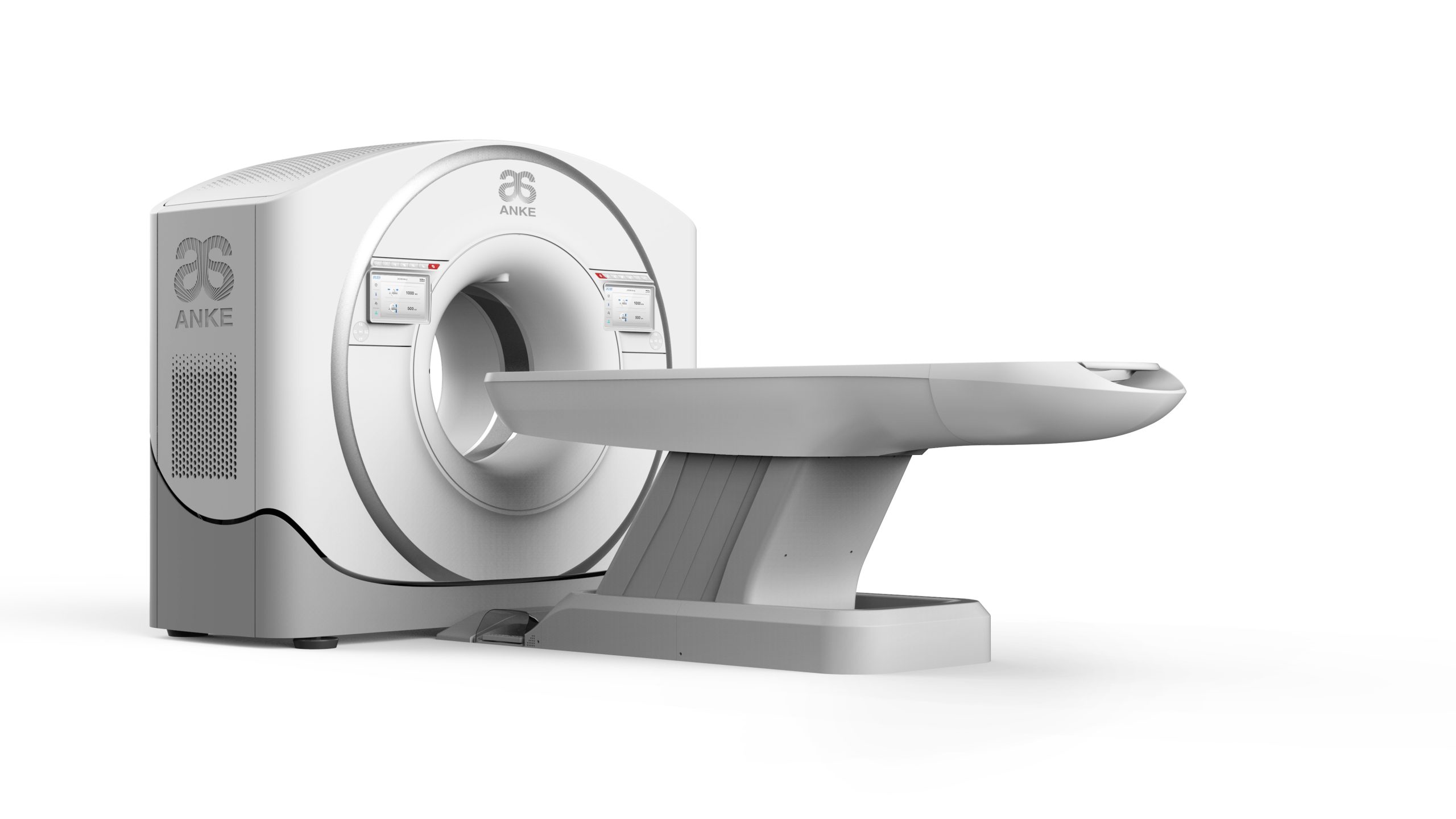

The ANATOM series of tomographs is designed to provide detailed and clear images of all anatomical structures of the body with minimal radiation exposure. Thanks to the function of automatic synchronization with the ECG, the equipment is effectively used in cardiology studies. The use of the latest data processing technologies, high speed and accuracy of scanning, as well as a user-friendly proprietary interface enable the doctor to work efficiently even with a large flow of patients.
- Expert-class CT scanner
- Generator from the world manufacturer Spellman (USA)
- Built-in low-dose protocols
- X-ray tube DUNLEE (USA)
- Ceramic OptiWave detector of our own production
- ANKE proprietary software and technology package
- ClearView intelligent platform
- Package contents: injector, printer and UPS system
Characteristics of the X-ray tube
- Effective thermal capacity of the X-ray tube: 8.0 MTO
- Heat output – 931 thousand heat units/min
- Anode current range: 10-667 mA
- Two focal spots: large – 1.1×1.2 mm and small – 0.6×1.2 mm
Generator characteristics
- Maximum power: 80 kW
- Voltage range on the tube: 80 kV, 100 kV, 120 kV, 140 kV
- Current range on the tube: 10 mA ~ 667 mA
Characteristics of the patient’s table
- Horizontal movement: 1850 mm
- Vertical travel: 500 mm
- Maximum patient weight: 230 kg
